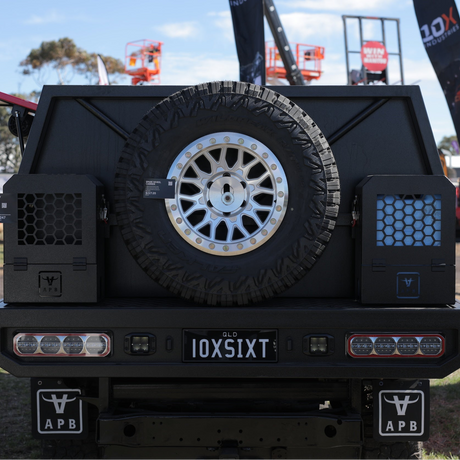

Spare Wheel Carrier
Description
Our Australian Performance Boxes Spare Wheel Carrier is the perfect solution for transporting your spare wheel securely and conveniently. This heavy-duty spare wheel carrier is designed to securely hold your spare wheel on the back of your vehicle, freeing up valuable space.
Product Specifications
Fitting Bolts Not Included.
- Wheel Carrier Bracket: 1 ×
- Wheel Carrier Plate: 1 ×
- Wheel Centre Disc: 1 × 140 mm diameter
- M20 Pad-Lockable Threaded Rod: 1 ×
- Installation Nuts & Washers: 2 × sets
- Finish Options: Alloy (Raw) only
4.9 Stars from 190+ Reviews
8000+ Vehicles Upgraded
12 Month Warranty
Australia-wide Freight
How to Install Your Australian Performance Boxes Spare Wheel Carrier
Our Australian Performance Boxes Spare Wheel Carrier is the perfect solution for transporting your spare wheel securely and conveniently. This heavy-duty Spare Wheel Carrier is designed to securely hold your spare wheel on the back of your vehicle, freeing up valuable space.
Please Note: Australian Performance Boxes does not offer an installation service or the M10 mounting bolts and nuts to fit this Spare Wheel Carrier and will need to be purchased seperately. This kit is designed for DIY installation. Please read the instructions carefully, or consult a professional if you’re unsure.
What’s in the Kit?
- 1 x Wheel carrier bracket
- 1 x Wheel carrier plate
- 1 x Wheel centre disc (140mm D)
- 1 x M20 pad lockable threaded rod
- 2 x Installation nuts + washers
Before You Start: Ensure this product is suitable for your spare tyre. The thread does not need to be drilled into the canopy. We always recommend mounting so that the weight of the tyre is supported by the tray.
If you have questions or need advice about the installation process, contact the Australian Performance Boxes team. Our experts are happy to help.
Installation Instructions
1. Position, Mark & Drill:
Place your Spare Wheel Carrier and base plate in your desired position on the back of your vehicle (centre or off-centre). Ensure the carrier is square and aligned where you want it. Ensure that the desired position is the centre of your rim.
Mark your drilling points through the SHS (Square Hollow Section) framework on the back of the canopy for both the Carrier and base plate. Drill through the SHS framework at your marked spots. If your desired height does not line up with the frame work ensure at assembly all bolts are plated on the inside.
2. Fit the Bracket:
For each hole, slide a washer onto an M10 bolt and through the Wheel Carrier bracket on the outer side of the Canopy and secure with an M10 Hex Nyloc Nut and tighten firmly. Repeat this step for the base plate.
3. Fit the Threaded Rod:
Fix the threaded rod to the mounting bracket in the following order, nut / spring washer / washer / mounting plate / washer / spring washer / nut
4. Mount Your Spare Wheel:
Place the tyre over the bolted carrier so the central rod passes through the rim. Slide the securing disc and spring washer over the tyre, onto the rod. Use the twist bolt to fix the disc and draw the wheel firmly toward the canopy or tray. This ensures a tight, stable fit.
5. Padlock:
Padlock the tyre if required using the pre drilled hole at the end of the thread.
6. Final Check:
Double-check all bolts and nuts. Ensure the entire assembly is tight and secure, and that the spare wheel is firmly held in place.
